BikeYoke Revive Small Parts
Original price was: $25.60.$15.36Current price is: $15.36.
- Safe Transactions, Happy Customers
- Quality You Can Count On
- Uncompromising quality, every time.
- Shop the Best Quality Online

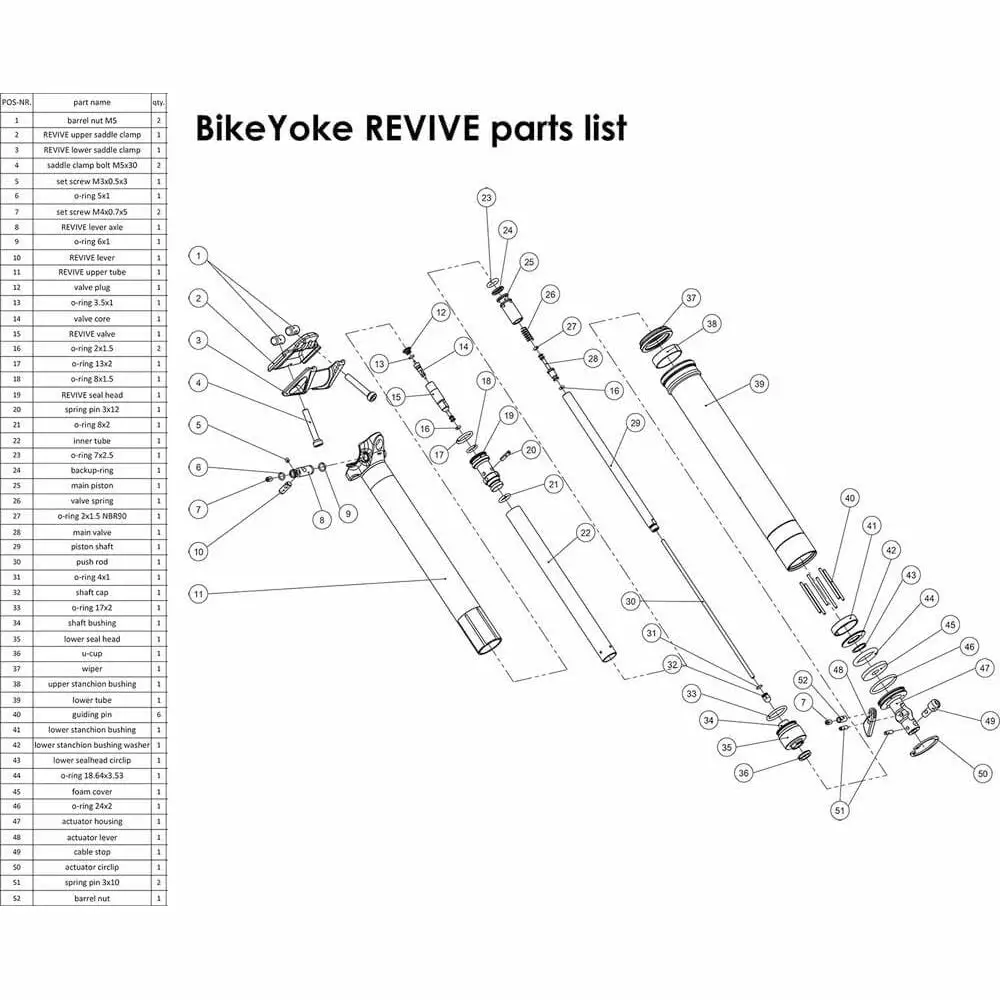

Genuine replacement parts to suit BikeYoke Revive Dropper Posts.
If the part number you want isn’t listed as a separate item, that is because it is sold as part of a kit.Â
Actuator Leverage Kit includes part numbers 31, 32, 48, 51.
Reset Lever Kit includes part numbers 5, 6, 7, 8, 9, 10.

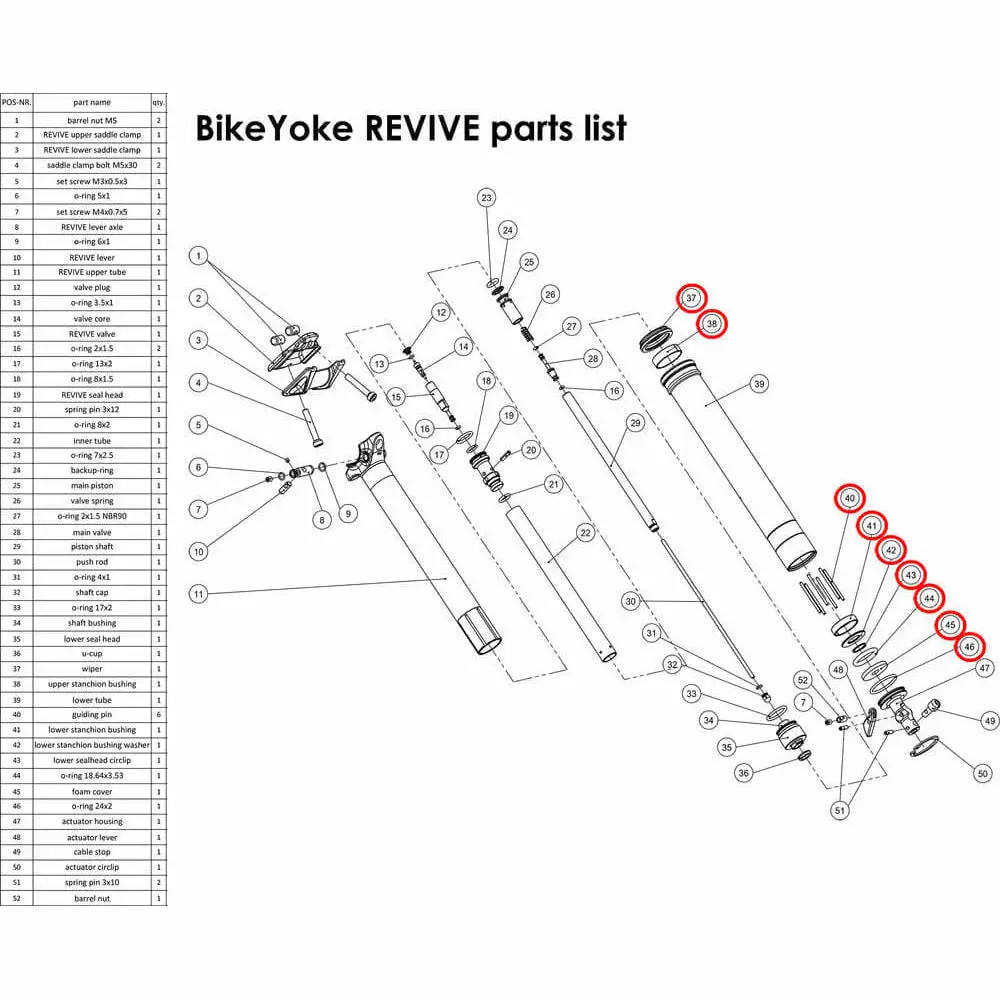

Service Kit includes part numbers 37, 40, 45, 57. Â
Service Kit #1 is for original posts that do NOT have a metal spring around the main seal. Service Kit #2 is for posts that DO have a metal spring around the seal. See the final picture.
O-Ring Service Kit includes part numbers 6, 9, 13, 16, 17, 18, 21, 23, 24, 27, 31, 33, 44, 46, 53, 54. Available to suit either 30.9/31.6mm posts or 34.9mm posts.
Main Valve Kit includes part number 16 (x1), 27, 28
Lower Seal Head Kit includes part numbers 33, 34, 35, 36

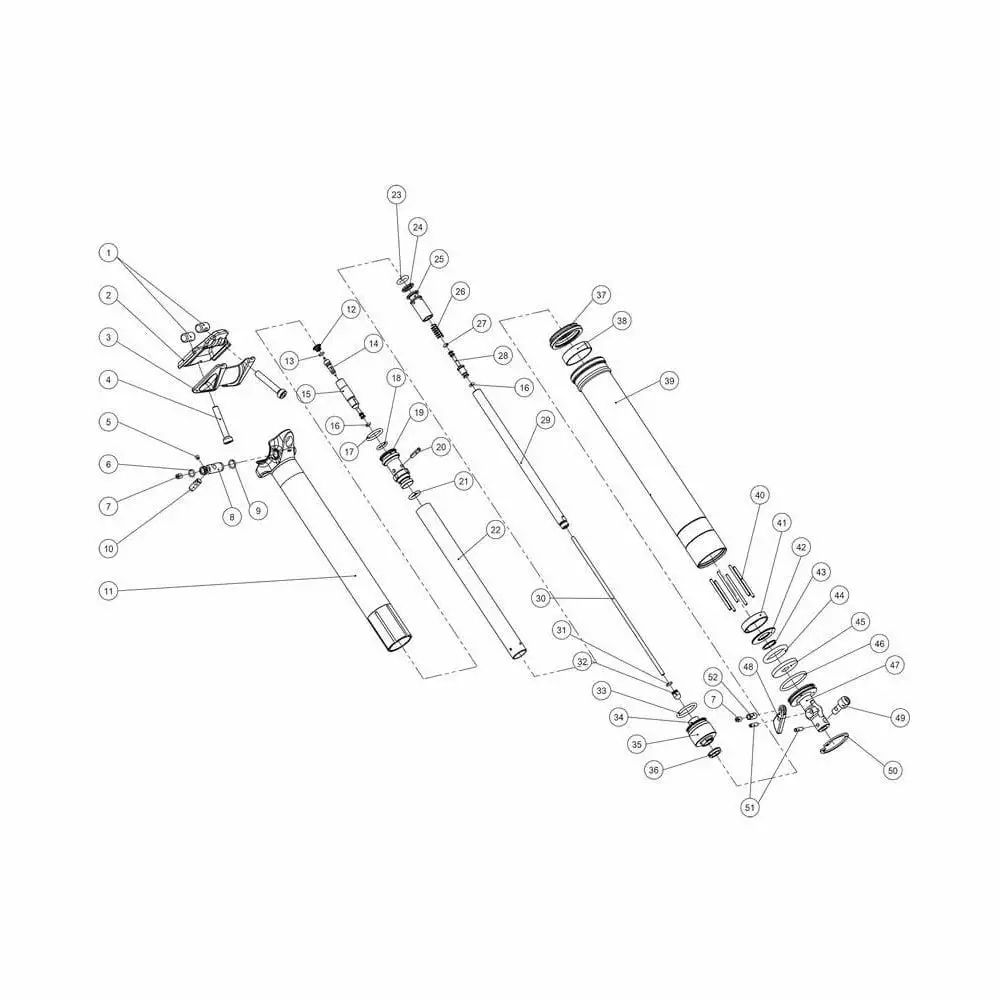

Revive Valve Kit includes part numbers 15, 16 (x1), 17, 18, 19, 20, 21Â
Â
| Option | Revive Valve Kit Includes 15 16 17 18 19 20 21, Reset Lever Kit Includes 5 6 7 8 9 10, Part Number 50 – Actuator Circlip, Part Number 39 – Lower Tube For 185mm-30.9mm, Part Number 39 – Lower Tube For 160mm-31.6mm, Part Number 39 – Lower Tube For 160mm-30.9mm, Part Number 39 – Lower Tube For 125mm-30.9mm, Part Number 30 – Push Rod For 160mm posts, Part Number 30 – Push Rod For 125mm posts, Part Number 29 – Piston Shaft For 160mm posts, Part Number 22 – Inner Tube For 160mm Posts – Micro Valve Compatible, Part Number 22 – Inner Tube For 160mm Posts, Part Number 11 – Upper Tube For 160mm Posts, O-Ring Service Kit 30.9-31.6mm Includes 6 9 13 16 17 18 21 23 24 27 31 33 44 46 53 54, Lower Tube Service Kit 34.9mm Posts Includes 37 40 45 57, Lower Tube Service Kit 2 Includes 37 40 45 57, Lower Tube Service Kit 1 Includes 37 40 45 57, Actuator Leverage Kit Includes 31 32 48 51, Lower Seal Head Kit Includes 33 34 35 36, Part Number 13 – O-Ring 3.5 x 1mm, Part Number 22 – Inner Tube For 185mm Posts – Micro Valve Compatible, Part Number 12 – Valve Plug, Part Number 22 – Inner Tube For 125mm Posts, Part Number 11 – Upper Tube For 125mm Posts, Part Number 1 – Barrel Nut x 2, O-Ring Service Kit 34.9mm Includes 6 9 13 16 17 18 21 23 24 27 31 33 44 46 53 54, Part Number 23 – O-Ring 7 x 2.5mm, Part Number 22 – Inner Tube For 125mm Posts – Micro Valve Compatible, Part Number 2 – Upper Saddle Clamp, Part Number 25 – Main Piston, Part Number 14 – Valve Core, Part Number 24 – Backup Ring, Part Number 7 – Set Screw M4, Part Number 29 – Piston Shaft For 125mm posts, Part Number 54 – Microvalve, Part Number 3 – Lower Saddle Clamp, Part Number 26 – Valve Spring, Part Number 56 – Microvalve, Part Number 39 – Lower Tube For 125mm-31.6mm, Part Number 4 – Saddle Clamp Bolt x 2, Part Number 52 – Barrel Nut, CLAMPDIVLO |
|---|
