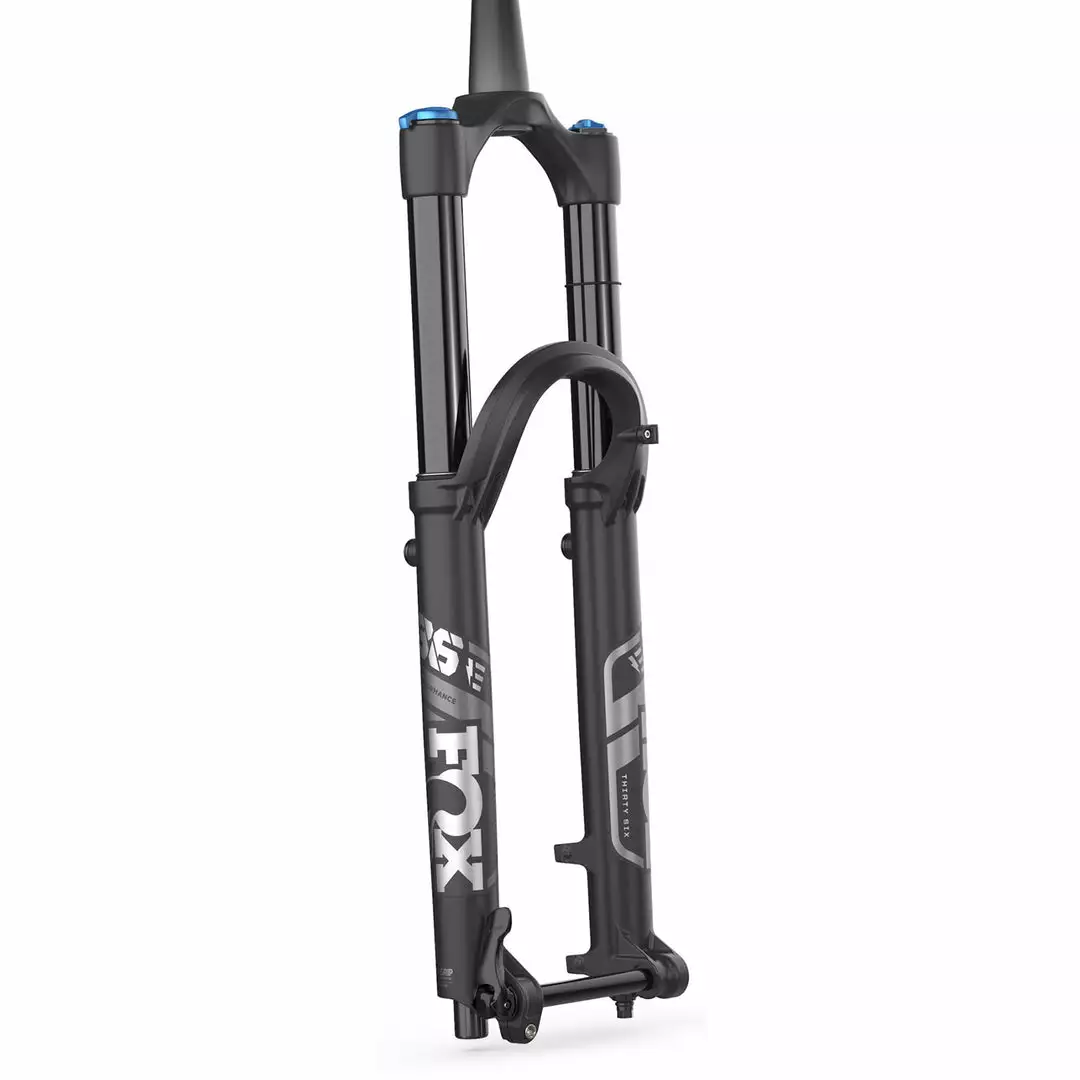

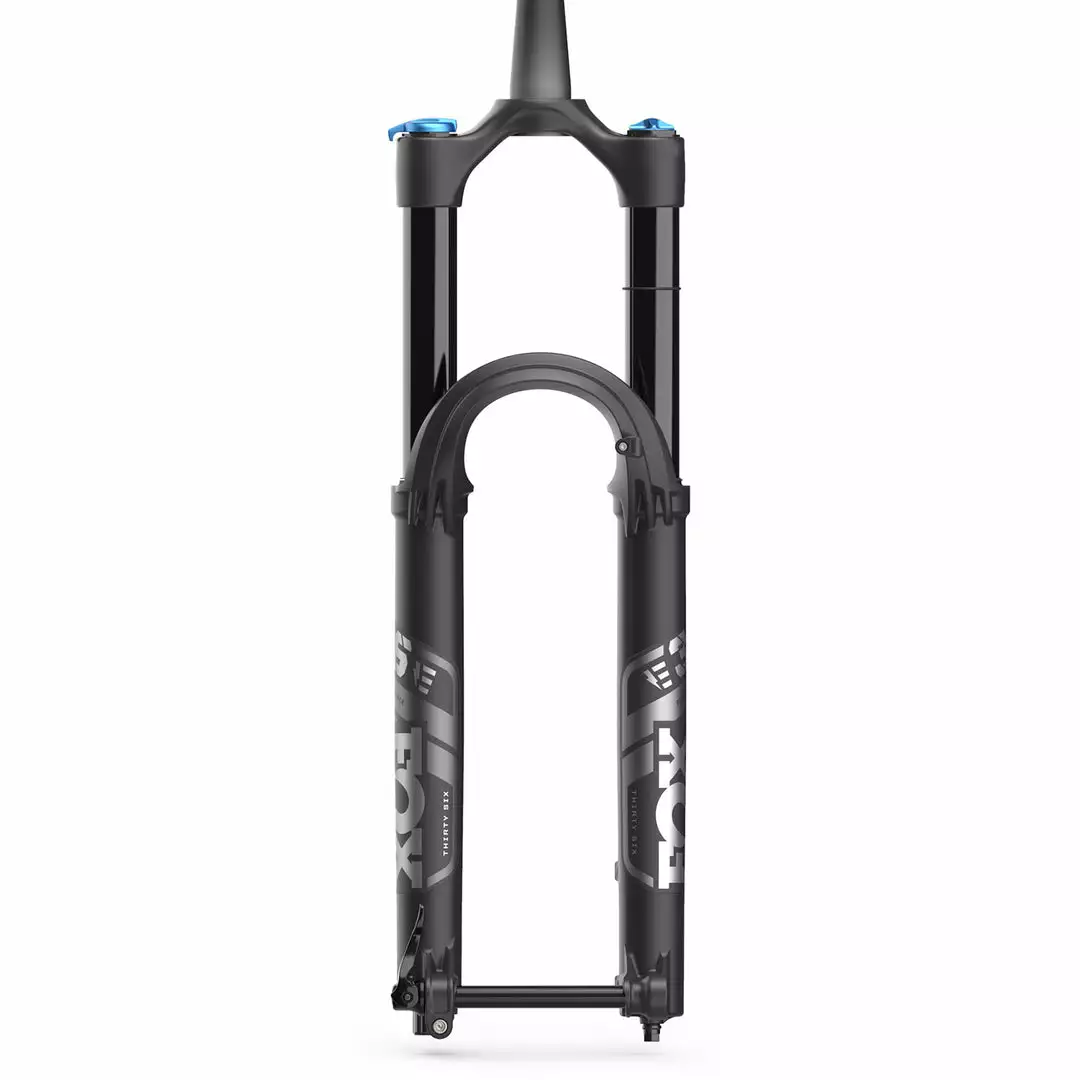

Fox Racing Shox Fox Shox 36 Float E-Optimized Performance Fork

The legendary 36 is no stranger to accolades, winning awards, accolades, and EWS races with equal panache. 36 offers an unmatchable combination of performance, tunability, and lightweight to ensure the winning ways continue, everywhere from big backcountry routes to the EWS circuit. Now available with an option optimised for the extra demands of E-bikes.

The 36 E features thicker-walled stanchions and extra material in the crown to make it that extra bit more robust.

who’s this item for? E-bike riders looking for a highly adjustable fork that’s ready to stand up to the demands of modern E-MTB’s.

Spring type: This fork features the EVOL air spring which uses a larger negative air volume to create a linear spring curve that delivers plushness off the top, extra mid-stroke support and a more tunable bottom out.

Wheel size compatibility: 27.5 or 29″.

Fork offset: 44mm pr 51mm

Axle to Crown Length: 543.6mm (27.5 variant)

Max tyre width: 72mm

Offset: 44mm

Steerer Type: Tapered

Steerer Tube Length: 263mm

Suspension travel: 160mm

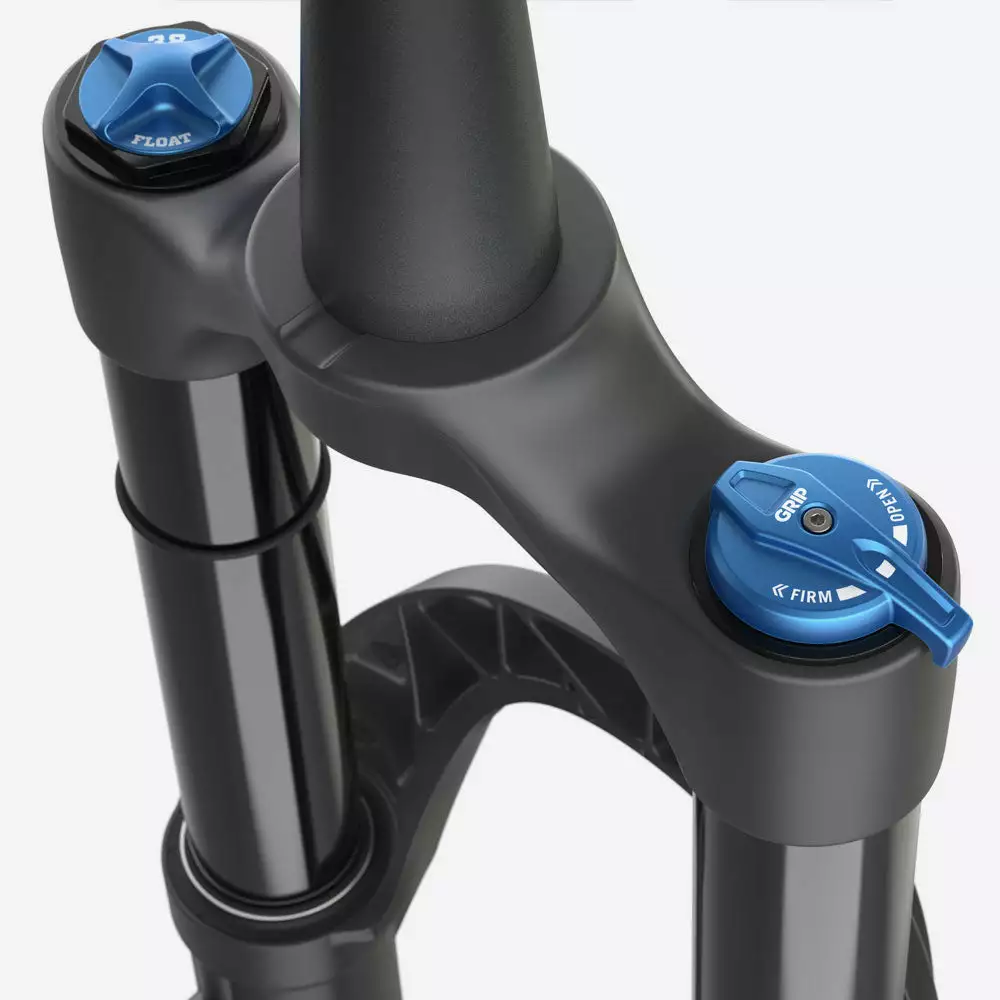

Compression and Rebound damper technology: Grip Damper, allows for smooth, quick and easy slide adjustment of compression and a three-position lever

Travel adjustability: There are no external controls to adjust the length of travel but you can do this internally by installing a different length air shaft (available separately).

Stanchion diameter: 36mm.

Axle size and style: 15 x 110mm, Floating axle

Steerer tube standard: Tapered 1.5″ – 1 1/8″

Brake hose clamp style: Bolted clamp.

Brake mount style and size: 180mm post mount.

Brake rotor compatibility:

• Min: 180mm
• Max: 230mm
