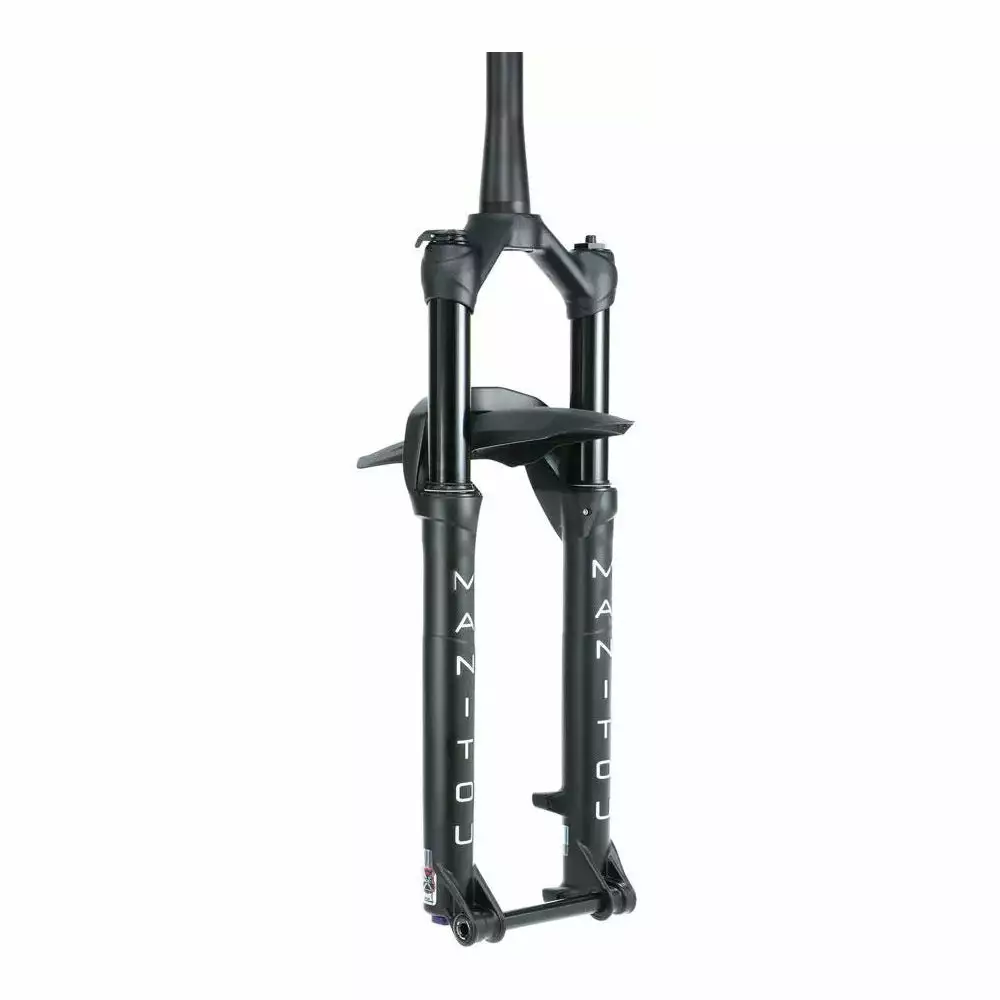

Parts Manitou Machete Fork

The Machete strikes the ideal balance between cost and performance making it a reliable XC/trail fork. 32mm black anodized stanchions. TS Air Spring. Kwik-Toggle damper w/ Lockout and Adjustable Rebound. HexLock SL thru-axle provides a strong wheel connection while remaining one of the simplest wheel removal/installations possible. Reverse-arch casting.

Who’s this item for: XC and Trail riders looking for a reliable, lightweight and high performing suspension fork.

Spring type: TS AIR.

Weight: 2027g.

Wheel size compatibility: 27.5+, 29″.

Fork offset: 44mm offset.

Axle to crown height: 525mm (120mm travel).

Suspension travel amount: 120mm.

Compression damper style technologies/adjustments: Adjustable TK.

Rebound damper adjustments: High-speed rebound and damping externally. Absolute + unit.

Travel adjustability: Internally adjustable to 110mm.

Volume adjustability: Can have tokens.

Stanchion diameter: 32mm.

Axle size and style: 15x 110mm Boost, threaded on non-drive side.

Steerer tube standard: tapered (28.6/40).

Lowers materials: 6066 Aluminium.

CSU / Steerer tube materials: Aluminium.

Brake hose clamp/retention style: Small clamp, tightens using screw.

Brake mount style: 160mm post mount.
