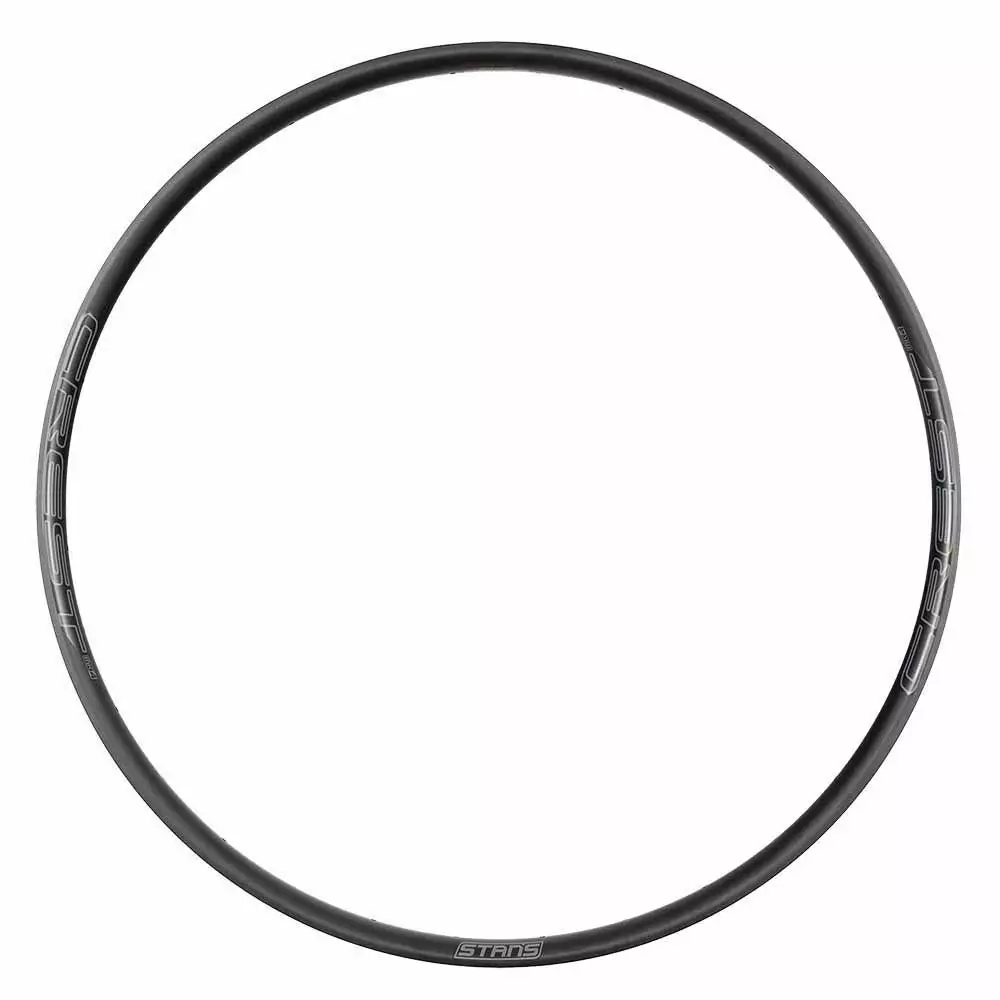

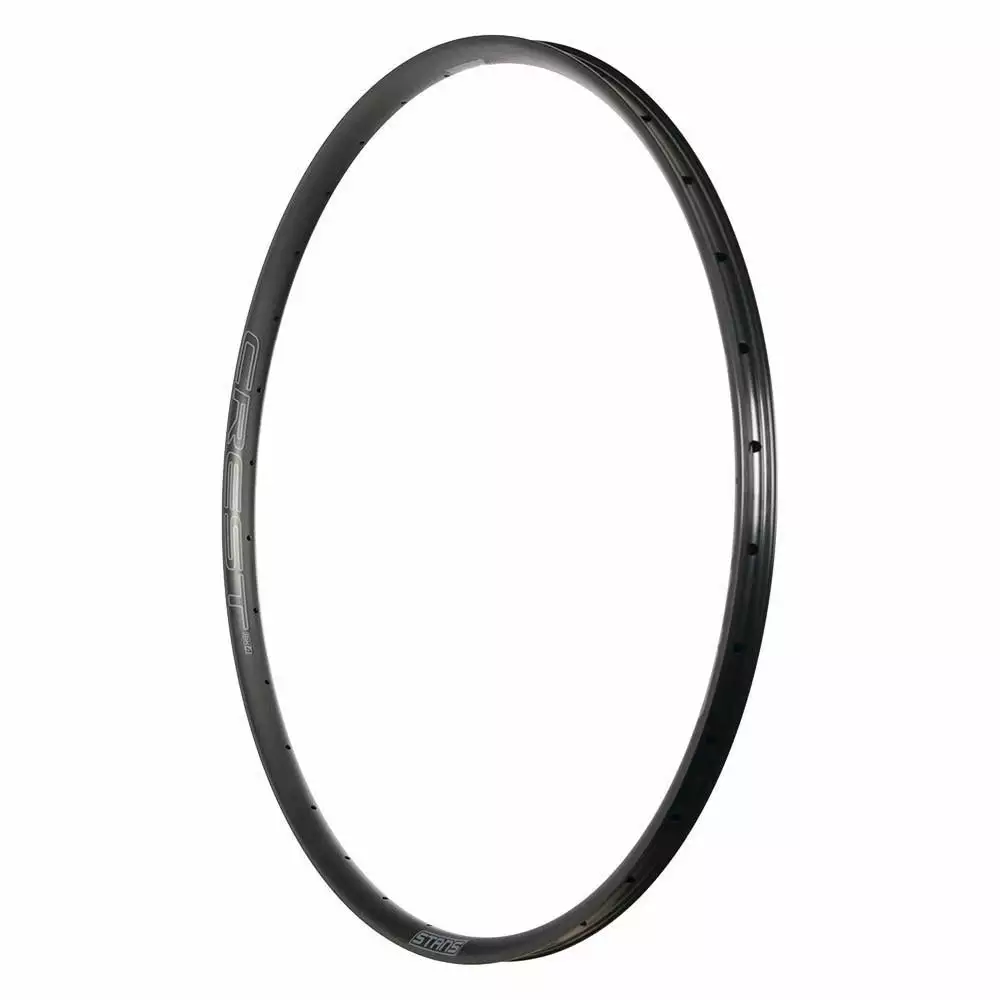

Stan’s NoTubes Crest Mk4 Rim Parts

Crest rims are part of the history of mountain biking. Introduced in 2005, the Crest’s design evolved directly from Stan’s earliest ideas, including the legendary 355 rims. Stan wanted a simple and durable rim that would work well without a tube and weighed less than everybody else’s rims.

The Crest achieved those goals. With a more durable and lighter 6069 alloy and an asymmetric rim shape that balances spoke tension, today’s Crest MK4 has technology that’s lightyears ahead of the early design, but the spirit of the original Crest lives on: make it light, make it serviceable, make it resist flats, and make it go as fast as possible.

The BST-Asymmetric rim design of the Crest MK4 allows for a stronger wheel while offering easy inflation and Stan’s trademark unmatched airtight seal. The Crest MK4 rim is optimized for 40mm Gravel tires and up to 2.3” mountain tires, making it a great, versatile choice for a wide range of bikes and riding styles.

The durable but forgiving ride of the Crest MK4’s 6069 alloy construction and lightweight, low-profile rim shape offers an unbeatable ride quality uniquely suited to Gravel and short-travel XC riding, and like all rims that bear the Crest name, it’s built for speed.

The Crest MK4 combines the heritage of Stan’s legendary tubeless design with today’s best materials and a stronger asymmetric design. Roll faster with more comfort and more security on your next Gravel or XC ride with the Crest MK4 rim.

Specs:

• Rim Internal Width: 25.0mm
• Rim External Width: 28.4mm
• Rim Depth: 18.0mm
• Hole Count: 28-hole or 32-hole
• Colour: Black
• Material: 6069 Aluminium Alloy
• Brakes: Disc only
• Rim Weight: 374g (27.5″) / 399g (29″)
• ERD: 563mm, 1.5mm Offset mm (27.5″) / 601mm,1.5mm Offset (29″)
• ETRTO: 584×25.0 (27.5″) / 622×25.0 (29″)
• ISO: 27.5″x28.4mm / 29″x28.4mm
• Required Tape: 27mm
• Recommended Spoke Tension: 115kgf (1130N)
• Max Pressure with 40c Tyre: 55psi
• Max Pressure with 2.0″ Tyre: 46psi
• Max Pressure with 2.3″ Tyre: 39psi
